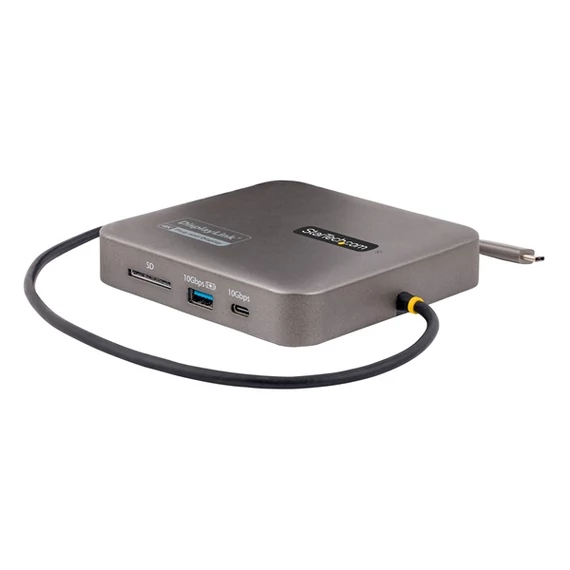

STARTECH USB-C Multiport Adapter, 2xHDMI, 1xLAN, 2xUSB-A/USB-C 10Gbps HUB, 100W PD, SD

Connector(s)

External Ports

2 - HDMI (19 pin)

1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)

1 - USB 3.2 Type-A (9 Pin, Gen 2, 10Gbps, 7.5W Power)

1 - SD / MMC Slot

1 - RJ-45

1 - USB Type-C (24 pin) USB Power Delivery Only

Host Connectors

1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)

Environmental

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-25°C to 65°C (-13°F to 149°F)

Humidity

0~95% RH (Non-condensing)

Hardware

4K Support

Yes

Fast-Charge Port(s)

No

Displays Supported

2

Interface

USB 3.2 Gen 2 - 10 Gbit/s

Bus Type

USB-C

Industry Standards

HDMI 2.0

USB 3.2 Gen 2 (10Gbps)

USB Power Delivery Specification Rev. 3.0

Chipset ID

VIA - VL103R-Q4

VIA - VL822-Q8

ASMedia - ASM1541

Genesys Logic - GL3232S

Realtek - RTL8211F

DisplayLink - DL-6950

Packaging Information

Package Height

1.8 in [4.5 cm]

Package Length

5.5 in [14.0 cm]

Shipping (Package) Weight

11.2 oz [318.0 g]

Package Width

6.7 in [17.0 cm]

Performance

Maximum Data Transfer Rate

10Gbps

Maximum Digital Resolutions

Dual 4K (4096x2160) 60Hz

Type and Rate

USB 3.2 Gen 2 - 10 Gbit/s

UASP Support

Yes

Compatible Networks

10/100/1000 Mbps

PXE

Yes

Full Duplex Support

Yes

General Specifications

Maximum Laptop Charging: 82 W

MTBF

184,713 Hours

Physical Characteristics

Color

Space Gray

Product Height

1.0 in [2.5 cm]

Product Length

4.7 in [12.0 cm]

Weight of Product

8.8 oz [250.0 g]

Product Width

4.7 in [12.0 cm]

Material

Plastic

Cable Length

21.7 in [55 cm]

Power

Power Source

Bus Powered and Host USB-C Power Adapter

Power Delivery

100W

Output Voltage

5 DC

Power Consumption (In Watts)

18W

Software

OS Compatibility

Windows® 7, 8, 8.1, 10, 11
macOS 10.11 to 10.12, 10.14 to 10.15, 11.0, 12.0, 13.0, 14.0
Android™
Linux® Ubuntu 18.04, 20.04
ChromeOS™

Special Notes / Requirements

System and Cable Requirements

A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery).

Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).

Note

Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery.

The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.

A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K).

USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).

Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
