Leírás

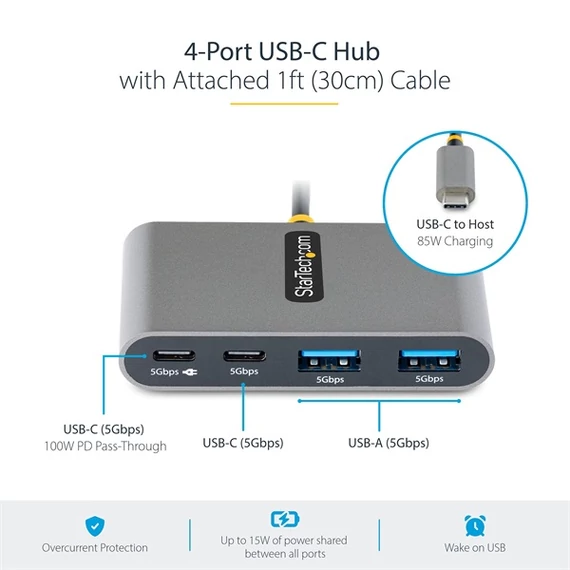

Connector(s)
External Ports
1 - USB 3.2 Type-C (Power Delivery + Data, 24 Pin, Gen 1, 5 Gbps)
1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
2 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-5°C to 70°C (23°F to 158°F)
Humidity
5% ~ 85% RH
Hardware
USB-C Device Port(s)
Yes
USB-C Host Connection
Yes
Fast-Charge Port(s)
No
Ports
4
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
USB 3.2 Gen 1 (5Gbps)
Industry Standards
USB 3.2 Gen 1 - Backward compatible with USB 2.0 and 1.1
USB Power Delivery 3.0
Chipset ID
Fresco - FL7102
Fresco - FL5001
Packaging Information
Package Length
6.9 in [17.5 cm]
Package Width
5.6 in [14.2 cm]
Package Height
1.2 in [3.0 cm]
Shipping (Package) Weight
3.3 oz [94.0 g]
Package Quantity
1
Performance
Total USB Power Output
4.5W (5V/0.9A)
Maximum Data Transfer Rate
5 Gbps (USB 3.2 Gen 1)
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
UASP Support
Yes
General Specifications
Maximum Laptop Charging: 80W
Physical Characteristics
Color
Space Gray
Form Factor
Compact
Product Length
1.7 in [4.2 cm]
Product Width
3.0 in [7.5 cm]
Product Height
0.6 in [1.4 cm]
Weight of Product
1.4 oz [41.0 g]
Material
Plastic
Cable Length
11.8 in [30 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Output Voltage
5 DC
Power Consumption (In Watts)
15W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
macOS 10.11, 10.12, 10.13, 10.14, 10.15, 11.0, 12.0, 13.0, 14.0 VLAN tagging is currently not supported in macOS
Linux Kernel 4.11.x (and up) - LTS versions only
iPadOS
ChromeOS
Android
Special Notes / Requirements
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure the host USB-C port supports USB Power Delivery.
Power will not pass through to the adapter when connected to a host USB-C port that lacks USB PD functionality.
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
The USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.
OCP is activated when a connected USB peripheral attempts to draw more power then is safely allocated to the port. OCP will prevent this peripheral from consistently connecting to the Computer. This may result in the Computer re-recognizing the device continuously, until the device is disconnected.
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery).
Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
What's in the Box
Included in Package
1 - USB-C Hub
